型號：A48Y 更新時間：2020-07-13

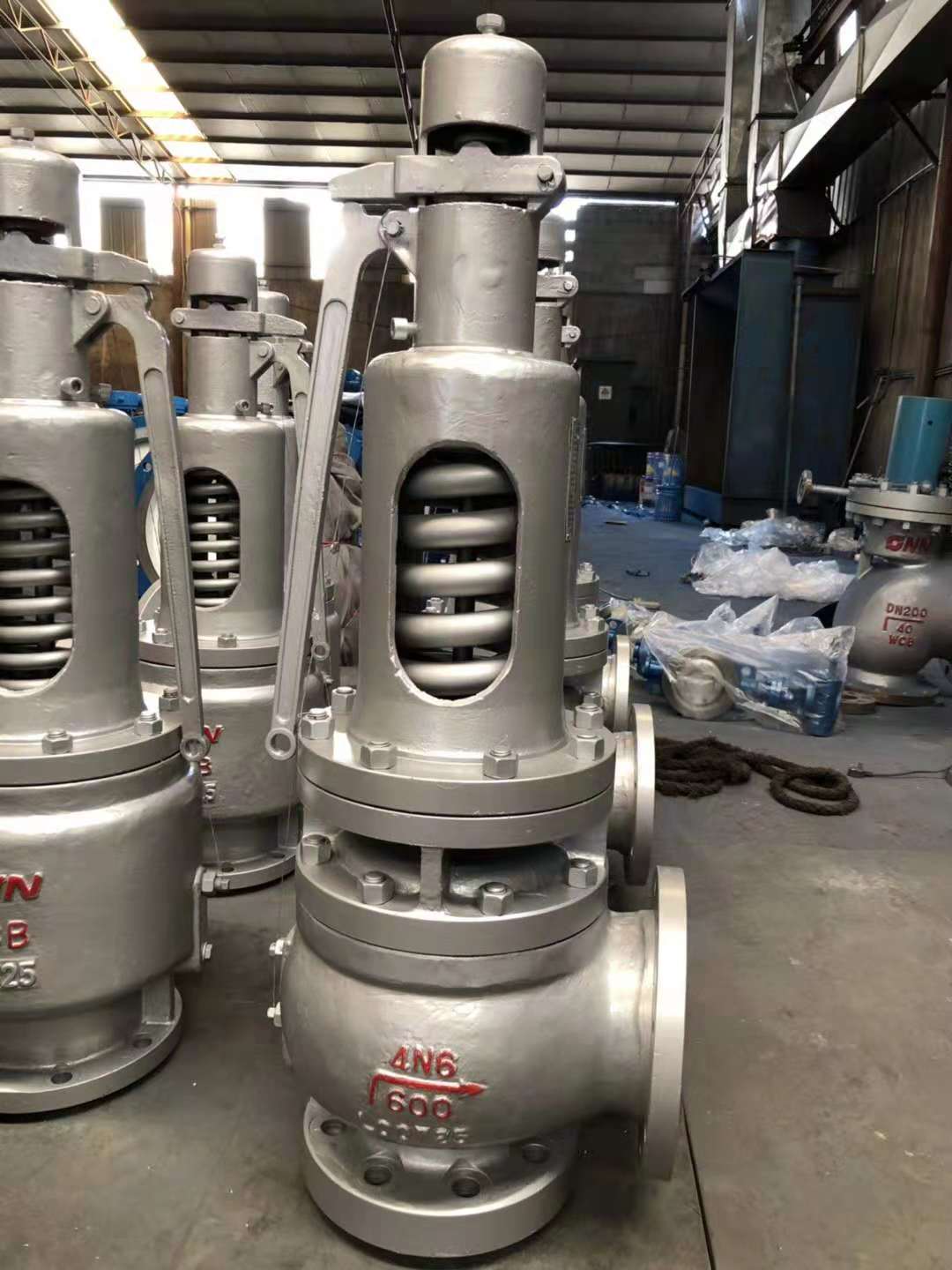

特點：A48Y彈簧全啟式安全閥，蒸汽安全閥適用於工作溫度≤350℃的蒸汽、空氣等介質的設備和管路上。
A48Y帶扳手全啟式安全閥youbengongsizizhuyanfashengchan，zaibaozhengzhiliangdetongshi，jiageyeshifeichangheli，yijizaishouhouwomenyezuodefeichangwanshan。daibanshouquanqishianquanfashiyongyugezhongbutongdeqingzhonggongyegongkuangyijijianzhuguandao。anquanfaguangfanyingyongyu：電氣、造紙、鍋爐、製藥、礦山、化工、機械設備管道、電子工業，城市建設等領域。
| 產品名稱 | A48Y帶扳手全啟式安全閥 |
| 產品型號 | A48Y |
| 公稱通徑 | DN20-400 |
| 壓力範圍 | 1.6MPa-10.0MPa |
| 閥體材質 | 鑄鋼、鍛鋼、不鏽鋼 |
產品概述：
A48Y帶扳手全啟式安全閥（法蘭連接蒸汽安全閥）適用於工作溫度≤350℃的蒸汽、空氣等介質的設備和管路上。
連接法蘭標準PN＜6.4MPa按JB/T-94係列1。PN≥6.4MPa按JB/T-94係列2標準。
零部件材料說明：
|
NO |
零件名稱 |
材料 |
|
1 |
閥體 |
WCB |
|
2 |
閥座 |
ZG2Cr13 |
|
3 |
調節圈 |
ZG2Cr13 |
|
4 |
閥瓣 |
2Cr13 |
|
5 |
導向套 |
2Cr13 |
|
6 |
閥蓋 |
ZG230-450 |
|
7 |
彈簧 |
50CrVA |
|
8 |
閥杆 |
2Cr13 |
|
9 |
扳手 |
ZG200-400 |
|
10 |
調整螺杆 |
45 |
|
11 |
保護罩 |
ZG200-400 |
|
|
密封麵材料 |
"H"堆焊D507,"Y"堆焊Co基硬質合金 |
1.6-4.0主要連接尺寸：
|
型號 |
公稱通徑 |
do |
D |
K |
g |
g1 |
b |
f |
f1 |
Z-ød |
f |
L |
L1 |
H |
|
A48Y-16C A44Y-16C A44Y-16P A44Y-16R |
20 |
15 |
105 |
75 |
|
55 |
16 |
2 |
|
4-14 |
2 |
110 |
95 |
411 |
|
25 |
16 |
115 |
85 |
|
65 |
16 |
2 |
|
4-14 |
2 |
110 |
95 |
411 |
|
|
32 |
20 |
140 |
100 |
|
78 |
18 |
2 |
|
4-18 |
3 |
115 |
100 |
411 |
|
|
40 |
25 |
150 |
110 |
|
85 |
18 |
3 |
|
4-18 |
3 |
120 |
110 |
472 |
|
|
50 |
32 |
165 |
125 |
|
100 |
20 |
3 |
|
4-18 |
3 |
135 |
120 |
532 |
|
|
65 |
40 |
185 |
145 |
|
120 |
20 |
3 |
|
4-18 |
3 |
160 |
140 |
556 |
|
|
80 |
50 |
200 |
160 |
|
135 |
20 |
3 |
|
8-18 |
3 |
170 |
135 |
561 |
|
|
100 |
65 |
220 |
180 |
|
155 |
20 |
3 |
|
8-18 |
3 |
195 |
175 |
667 |
|
|
125 |
80 |
250 |
210 |
|
185 |
22 |
3 |
|
8-18 |
3 |
210 |
190 |
857 |
|
|
150 |
100 |
285 |
240 |
|
210 |
24 |
3 |
|
8-23 |
3 |
255 |
230 |
915 |
|
|
200 |
125 |
340 |
295 |
|
265 |
26 |
3 |
|
12-23 |
3 |
300 |
260 |
1073 |
|
|
250 |
150 |
405 |
355 |
|
320 |
30 |
3 |
|
12-26 |
4 |
350 |
320 |
1307 |
|
|
300 |
220 |
460 |
410 |
|
375 |
30 |
4 |
|
12-26 |
4 |
370 |
350 |
1233 |
|
|
350 |
250 |
520 |
470 |
|
435 |
34 |
4 |
|
16-26 |
4 |
500 |
450 |
1711 |
|
|
400 |
280 |
580 |
525 |
|
485 |
36 |
4 |
|
16-30 |
4 |
500 |
450 |
1780 |
|
|
A48Y-25 |
20 |
15 |
105 |
75 |
|
55 |
16 |
2 |
|
4-14 |
2 |
110 |
95 |
411 |
|
25 |
16 |
115 |
85 |
|
65 |
16 |
2 |
|
4-14 |
2 |
110 |
95 |
411 |
|
|
32 |
20 |
140 |
100 |
|
78 |
18 |
2 |
|
4-18 |
3 |
115 |
100 |
411 |
|
|
40 |
25 |
150 |
110 |
|
85 |
18 |
3 |
|
4-18 |
3 |
120 |
110 |
472 |
|
|
50 |
32 |
165 |
125 |
|
100 |
20 |
3 |
|
4-18 |
3 |
135 |
120 |
532 |
|
|
65 |
40 |
185 |
145 |
|
120 |
22 |
3 |
|
8-18 |
3 |
160 |
140 |
556 |
|
|
80 |
50 |
200 |
160 |
|
135 |
22 |
3 |
|
8-18 |
3 |
170 |
135 |
561 |
|
|
100 |
65 |
230 |
190 |
|
160 |
24 |
3 |
|
8-23 |
3 |
195 |
175 |
667 |
|
|
125 |
80 |
270 |
220 |
|
188 |
28 |
3 |
|
8-26 |
3 |
210 |
190 |
857 |
|
|
150 |
100 |
300 |
250 |
|
218 |
30 |
3 |
|
8-26 |
3 |
255 |
230 |
915 |
|
|
200 |
125 |
360 |
310 |
|
278 |
34 |
3 |
|
12-26 |
3 |
300 |
260 |
1073 |
|
|
250 |
150 |
425 |
370 |
|
332 |
36 |
3 |
|
12-30 |
4 |
350 |
320 |
1307 |
|
|
300 |
220 |
485 |
430 |
|
390 |
40 |
4 |
|
16-30 |
4 |
370 |
350 |
1233 |
|
|
350 |
250 |
555 |
490 |
|
448 |
44 |
4 |
|
16-34 |
4 |
500 |
450 |
1711 |
|
|
400 |
280 |
620 |
550 |
|
505 |
48 |
4 |
|
16-36 |
4 |
500 |
450 |
1780 |
|
|
A48Y-40 A44Y-40 A44Y-40P A44Y-40R |
20 |
15 |
105 |
75 |
51 |
55 |
16 |
2 |
4 |
4-14 |
2 |
110 |
95 |
411 |
|
25 |
16 |
115 |
85 |
58 |
65 |
16 |
2 |
4 |
4-14 |
2 |
110 |
95 |
411 |
|
|
32 |
20 |
140 |
100 |
66 |
78 |
18 |
2 |
4 |
4-18 |
3 |
115 |
100 |
411 |
|
|
40 |
25 |
150 |
110 |
76 |
85 |
18 |
3 |
4 |
4-18 |
3 |
120 |
110 |
472 |
|
|
50 |
32 |
165 |
125 |
88 |
100 |
20 |
3 |
4 |
4-18 |
3 |
135 |
120 |
532 |
|
|
65 |
40 |
185 |
145 |
110 |
120 |
22 |
3 |
4 |
8-18 |
3 |
160 |
140 |
556 |
|
|
80 |
50 |
200 |
160 |
121 |
135 |
22 |
3 |
4 |
8-18 |
3 |
170 |
135 |
561 |
|
|
100 |
65 |
235 |
190 |
150 |
160 |
24 |
3 |
4.5 |
8-23 |
3 |
195 |
175 |
697 |
|
|
125 |
80 |
270 |
220 |
176 |
188 |
28 |
3 |
4.5 |
8-26 |
3 |
210 |
190 |
857 |
|
|
150 |
100 |
300 |
250 |
204 |
218 |
30 |
3 |
4.5 |
8-26 |
3 |
255 |
230 |
915 |
|
|
200 |
125 |
375 |
320 |
260 |
282 |
38 |
3 |
4.5 |
12-30 |
3 |
300 |
260 |
1073 |
|
|
250 |
150 |
450 |
385 |
313 |
345 |
42 |
3 |
4.5 |
12-34 |
4 |
350 |
320 |
1307 |
|
|
300 |
220 |
515 |
450 |
364 |
408 |
46 |
4 |
4.5 |
16-34 |
4 |
370 |
350 |
1233 |
|
|
350 |
250 |
580 |
510 |
422 |
465 |
52 |
4 |
5 |
16-36 |
4 |
500 |
450 |
1711 |
|
|
400 |
280 |
660 |
585 |
474 |
535 |
58 |
4 |
5 |
16-41 |
4 |
500 |
450 |
1711 |
